- Series Label

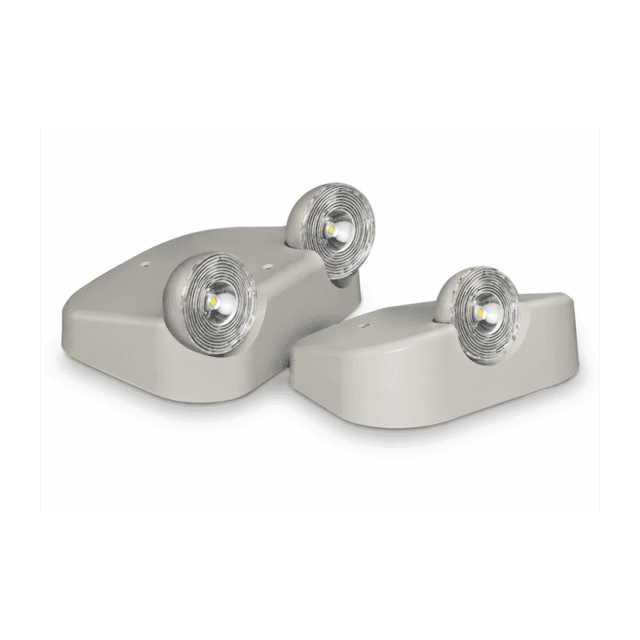

- Sage Series SOA
- Lamp Head
- One, 0.5W white LED per lamp head (0.5W per head).
- Lamp Assembly
- Unique all-inclusive lamp, diffuser and lens assembly; adjustable LED lamp heads for optimal center-to-center spacing.
- Power Source
- Powered from a low voltage power source with low voltage wiring (not provided).
- No Battery Note
- Remote head only — contains no battery; powered from a remote/central low-voltage emergency source. Maximum run distance is determined by system voltage, wire gauge, and total maximum wattage on the run.
- Input Voltage Note
- No input voltage stated on the spec sheet. Powered from a low-voltage source; supply voltage and maximum run are set by the host EBU/EXIT or central battery system per the fixture compatibility table. Refer to individual specification sheets to confirm remote load capacity.
- Height
- 75.1 mm (2.96 in)
- Width Double Head
- 75.0 mm (2.97 in)
- Depth Overall
- 140.6 mm (5.54 in)
- Base Length Alt
- 140.6 mm (.554 in)
- Rear Dim
- 53.1 mm (2.09 in)
- Front Face Dim A
- 59.3 mm (2.35 in)
- Front Face Dim B
- 51.5 mm (2.03 in)
- Base Plate Width
- 124.5 mm (4.901 in)
- Base Plate Width Alt
- 124.5 mm (4.90 in)
- Warranty
- 5 year total customer satisfaction warranty. For details see product catalog technical data section.
