Emergency Combo

Basin

BAI

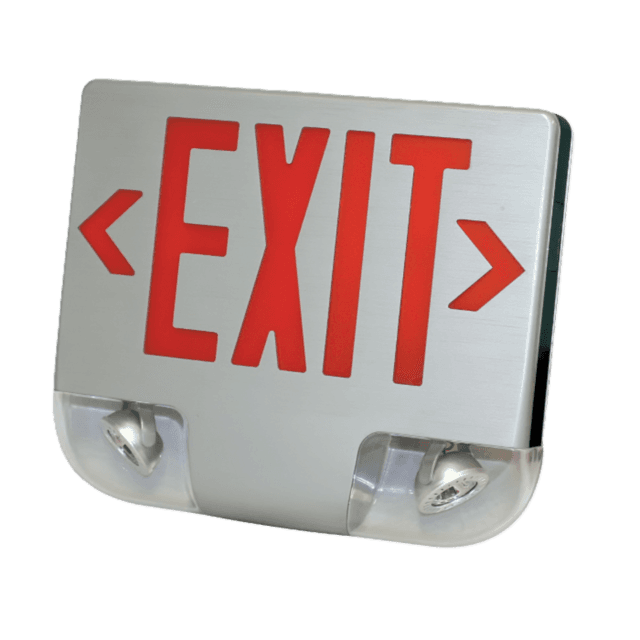

First premium-grade die-cast combo in the market. Unique design provides a spec-grade EXIT sign with LED lamp heads in one low-profile housing, combining an illuminated exit sign with emergency LED lamp heads.

Spec sheet PDF

EXIT + EMERGENCY

Both in one unit.

DIE-CAST

Spec-grade housing.

ADJUSTABLE HEADS

Aim the egress light.

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

BAI

Sample order example: BAI-BB-1-R-W-W-RC

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Self Contained Vs Central Battery: Self-contained EM models carry an internal 8.4V NiCd battery + solid-state transfer switch for a min. 90-min emergency runtime on loss of normal power (UV self-contained operation). The same housing is also offered as a remote/central-battery type: 24VDC for Sage central battery (RE central-battery) systems, and 60VDC for POE / DC power distribution systems (Remote Capacity 'RC' / 48 / 60 ordering options).
Config: LED lamp heads integrated into the combo housing; field selectable knockout chevron directional indicators on the exit face.
Wattage: 3W per head (1 LED x 3 watts).
Remote Capacity: Remote Capacity (RC) option supports compatible remote heads — see remote lamp compatibility table.
Front Width: 5⅝"
Front Height: 10¾"
Overall Width Base: 14½"
End Depth Canopy: 4⁵⁄₁₆"
End Height: 11¼"
End Base Depth: 2⁵⁄₁₆"

Basin
