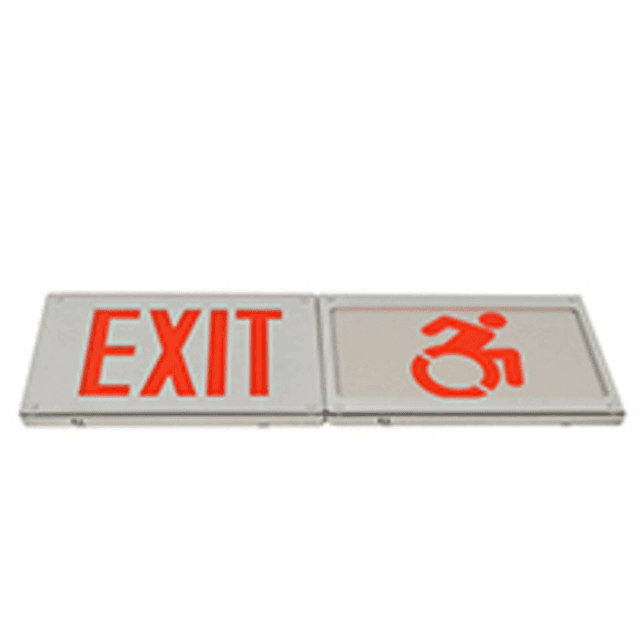

Accessible Exit System (Master–Remote)

Pebble

PBL

Supply and install ACCESSIBLE EXIT Series PBL LED exit signs, consisting of one MASTER and one REMOTE. The face and housing shall be of die cast aluminum with maximum thickness of 5/8" (single face). Lighting uniformity shall be better than 4:1 when measured over any illuminated area and average brightness will exceed 6 ft Lambert (21 Cd/m2). Life expectancy of the LEDs shall be in excess of 20 years. The power supply and charger shall be an isolated digital type with regulated current and voltage output to the lamp load. AC supply shall be universal 120/277 VAC input via two-wire feed.

Spec sheet PDF

ACCESSIBLE EXIT

Code-accessible egress.

MASTER + REMOTE

Coordinated pair.

DIE-CAST

Durable housing.

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

PBL

Sample order example: PBL-BB-1-R-W-W-AR-TW-EXO

Signature Series

Buy American Act compliant and made in the USA. BAA documentation ships with the submittal package.

Specifications

Electronics Typo Flag: Verbatim from the sheet: ‘…fits inside a standard 4"square deep Jbox.. AC and DC wiring…’ — the source has a missing space before 4" (‘4"square’), an abbreviated/unspaced ‘Jbox’, and a double period (‘Jbox..’). Preserved verbatim above; flagged, not corrected.
Connecticut State Fire Safety Code Para 1011 1 2: 1011.1.2 Accessible exits. Where exit signs are required by Section 1011.1 of this code, accessible exit doors at the level of exit discharge that lead directly to accessible paths of exit discharge shall additionally be marked by the International Symbol of Accessibility. Such symbol shall be not less than 6 inches high and shall be incorporated into the required exit sign or shall be located directly adjacent to it. Such symbol shall meet the requirements of Section 1011.
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
Patent: U.S. Patent 5,276,591
Patent Typo Flag: Verbatim on the sheet: ‘U.S. Patent 5, 276, 591’ (page 1) and ‘U.S. Patent 5, 276, 591’ (page 2 suggested-spec area shows ‘5, 276, 591’) — the source renders the patent number with spaces after the commas. Normalized to 5,276,591 in `patent`; flagged here.
Install Note: PRE-INSTALL 4" X 4" X 2 1/8" DEEP J-BOX WITH 1 1/2" EXTENSION RING FOR BB & NB MODELS.
Standard Deep Jbox: 4" x 4" x 2 1/8", with 1 1/2" EXTENSION; 120/277 VAC INPUT.
Vertical Wall Mount: EXIT over the accessibility symbol, vertical stack; arrow shown (>).
End Mount: Side/end-mount configuration shown with EXIT + accessibility symbol.
Exit Open Face Option: EXIT OPEN FACE OPTION shown (open-face / stencil EXIT).
Wiring: CLASS 2 WIRING 18-22 AWG BY OTHERS.
Lighting Uniformity: better than 4:1
Average Brightness: 6 ft-Lambert (21 Cd/m2)
Led Life Expectancy: in excess of 20 years
Ac Supply: universal 120/277 VAC input via two-wire feed
