Emergency Remote Head

Mist

MIS

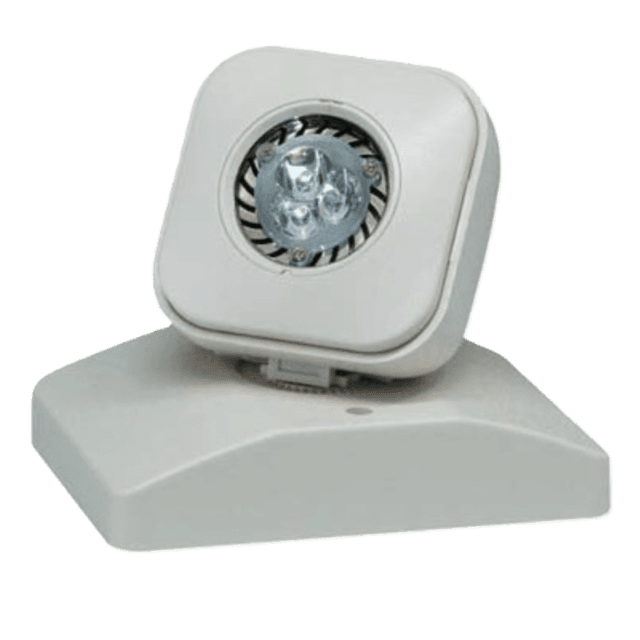

Indoor high performance MR16 LED remote head. Powered from a low voltage power source with low voltage wiring (not provided). No on-board battery — operates from an external EBU/EXIT combination unit or a central battery system. Available as a single or double lamp head.

Spec sheet PDF

MR16 OPTICS

Crisp, focused beams.

ADJUSTABLE HEADS

Aim the light.

CENTRAL-BATTERY

Low-voltage powered.

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

MIS

Sample order example: MIS-RB-2-HL

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Type: MR16 / MR-16 base LED Lamp, ultra bright white
Standard Blank: 3.6W high lumen white LED lamp (adjustable; increases center-to-center spacing)
Option Hl: 7.0W high lumen white LED lamp (high performance MR-16 base; premium center-to-center spacing)
Configurations: 1 = single head; 2 = double head
No Battery Note: Remote head only — contains no battery. Powered from a low voltage power source (EBU/EXIT combination unit or central battery system) via low voltage wiring (not provided). Maximum run distance is determined by system voltage, wire gauge, and total maximum wattage on the run.
Construction: Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant thermoplastic in white finish. Universal mounting base plate included with mounting hardware.
Double Head Width In: 8¼
Single Head Depth In: 4¼
Height In: 5
Base Width Double In: 6
Base Width Single In: 5¼
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
