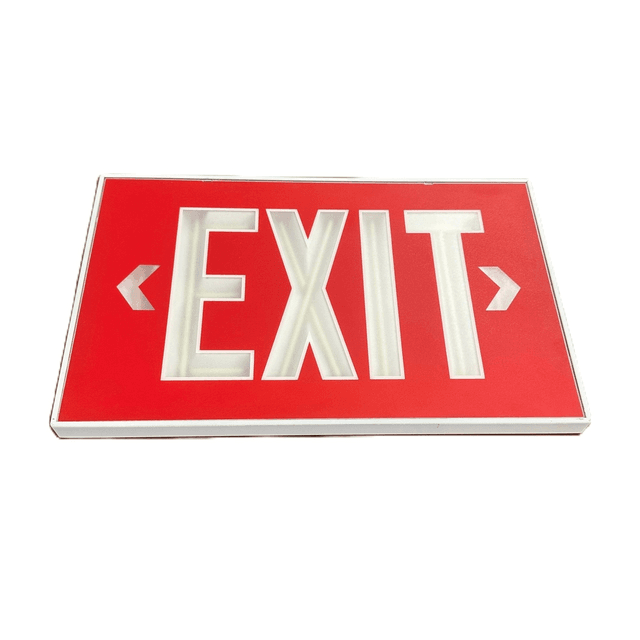

Self-Luminous Exit Sign (Tritium)

Mesa

MES

Supply and install Self-Luminous Exits Series MES self luminous EXIT signs illuminated by tritium gas lamps. The housing shall be fabricated from extruded aluminum with overall dimensions of 14" x 9" x 3/4", having a minimum external wall thickness of .09" and a polycarbonate window of .125" minimum thickness. Universal mounting brackets shall be supplied. For signs specified with a luminous life of 10 years, the minimum initial brightness measured at any point on the external surface shall be 0.12 ft L (.21 cd/m²); for any other specified lifetime, the minimum surface brightness shall be 0.012 ft L (.021 cd/m²) per year of specified luminous life.

Spec sheet PDF

SELF-LUMINOUS

Tritium-lit, always on.

ACCESSIBLE

Regionally-approved configs.

NO TESTING

Legally exempt from monitoring.

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

MES

Sample order example: MES-10-1-R-BA

Signature Series

Buy American Act compliant and made in the USA. BAA documentation ships with the submittal package.

Specifications

Power: SELF-LUMINOUS (radioluminescent tritium gas). NO electrical connections, NO battery, NO external power input, NO heat generated, and NO maintenance required for the specified life (up to 20 years). Not central-battery powered (ebs_integrated = false). No external light required for activation.
Guarantee: Guaranteed luminous life up to 20 years, as specified; illuminated life as specified on the product label.
10 Year: Minimum initial brightness measured at any point on the external surface shall be 0.12 ft·L (0.21 cd/m²).
Other Lifetimes: For any other specified lifetime, the minimum surface brightness shall be 0.012 ft·L (0.021 cd/m²) per year of specified luminous life.
Wavelength: 525 nm (green)
Overall: 14" x 9" x 3/4" (356 mm x 229 mm x 19 mm)
Width Face: 14" (356 mm)
Height: 9" (229 mm)
Depth: 3/4" (19 mm)
Wall Mount Projection: 3/4" (19 mm)
Top Mount Gap: 1/4" (16 mm)
Face Width Dim: 5" (127 mm)
Single Face Profile: 3/4" (19 mm)
Double Face Profile: 1 1/2" (38 mm)
Operating Environment: Suitable for use in wet locations.
Mounting Summary: Wall (back), top, and end mounting standard; optional canopy/pendant mounts. Universal mounting brackets supplied. Single-face and double-face configurations (No. of faces = 1 or 2).
Warranty: Unconditional warranty against failure to meet required standards of illuminated life, as specified on the product label.
