Emergency Combo

Harbor

HAR

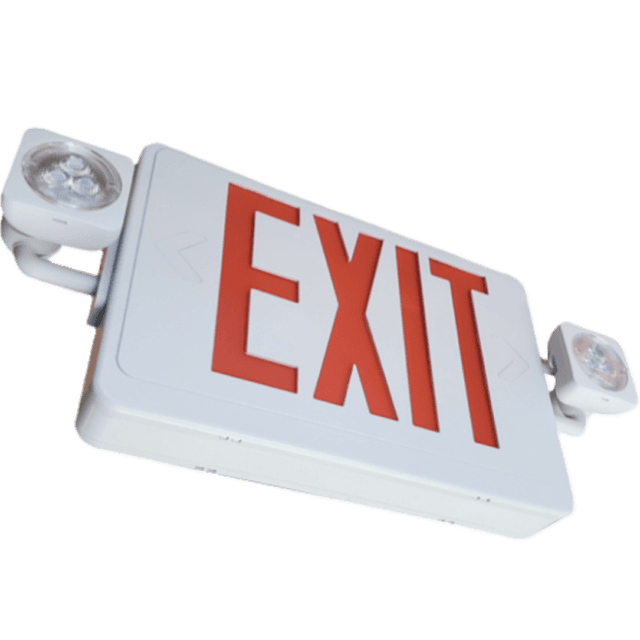

Series HAR — Reduced Profile All LED Exit & Emergency Thermoplastic Combo. Combination unit: ultra-bright LED EXIT sign + adjustable White LED emergency lamp heads, with internal rechargeable battery and solid-state transfer switch for minimum 90-minute emergency illumination.

Spec sheet PDF

EXIT + EMERGENCY

Both in one unit.

REDUCED PROFILE

Slim on the wall.

SAGE LIVE™

Monitored on the central battery.

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

HAR

Sample order example: HAR-R-W

Signature Series

Buy American Act compliant and made in the USA. BAA documentation ships with the submittal package.

Specifications

Voltage: Dual 120/277 VAC input
Battery: 3.6V rechargeable NiCd, maintenance-free, long life
Charger: Fully automatic solid-state two-rate charger; recharges a discharged battery in 24 hours
Transfer: Internal solid-state transfer switch
Runtime: Minimum 90-minute emergency illumination
Indicators: Bi-color LED battery-condition indicator (Green = normal, Red = check battery); charge/power 'ON' LED indicator; push-to-test switch
Type: White LED adjustable lamp heads, all-inclusive lamp/reflector/lens assembly
Wattage Per Head: 1.5 watt (3 LEDs x 0.50 watt) per head
Coverage: Up to 30-ft center-to-center spacing with a 3-ft path of egress at 10-ft mounting height
Exit Face Width: 17" overall; 12" and 5-1/8" reference dimensions across the EXIT face
Exit Face Height: 8" overall; 8-3/4" with mounting canopy
Depth: 4-5/8" (lamp-head projection / overall depth)
Lower Detail: 1-3/4" and 2-9/16" reference dimensions (lower housing / canopy detail)
