Signature Series
Buy American Act compliant and made in the USA. BAA documentation ships with the submittal package.
Specifications
- Patent
- U.S. Patent 5, 851, 061
- Warranty
- 3 year total customer satisfaction warranty. For details see product catalog technical data section.
- Suggested Specifications

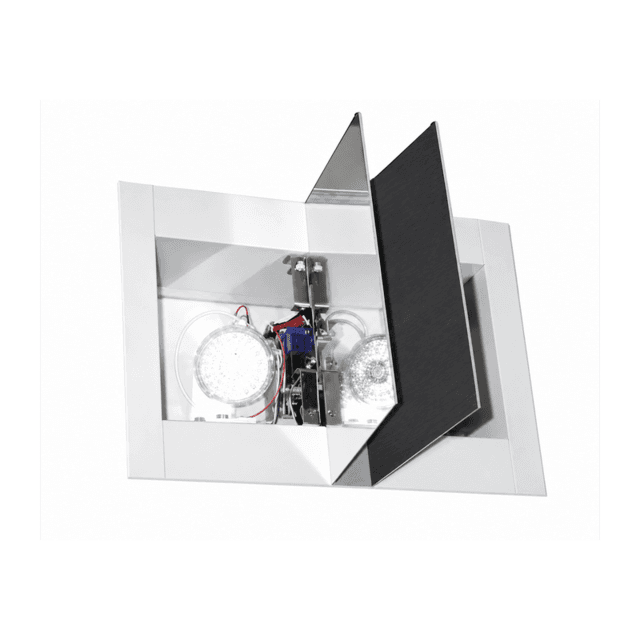

- Install Series ECL recessed emergency light fixture available as unit equipment including battery diagnostics as standard, or as a remote device connected to a central power source. In normal mode, dual lamp heads, charger and battery shall be fully recessed and covered by hinged doors with reflective internal surfaces with no exposed mounting screws. Upon loss of utility power, doors will open immediately, lamps will be energized and light will be reflected on to the path of egress. Upon restoration of utility power, lamps will extinguish and the reflective doors will automatically retract. The door linkage shall allow manual movement without breakage or misalignment. Door and lamp position shall be adjustable to allow placement of light beams to any desired position. Lamps shall be 12 VDC LED MR16 with total power rating up to 18 watts. The battery charger shall be an isolated power supply with universal 120/277 VAC input via two- wire feed. Automatic battery diagnostics shall be included with all models and shall perform all test functions and fault displays required by UL Standard 924.
- Note
- THIS DEVICE CONTAINS A MICROPROCESSOR TO CONTROL EMERGENCY LIGHTING. OPERATION CAN BE DISRUPTED BY EMI (ELECTRO- MAGNETIC INTERFERENCE) EMITTED BY CERTAIN TYPES OF HIGH-POWERED EQUIPMENT. DO NOT CONNECT IN THE SAME CIRCUIT OR SHARE NEUTRAL WIRING WITH FREQUENCY-CHANGING DIMMING EQUIPMENT USED WITH HID FIXTURES OR SIMILAR. CONTACT FACTORY FOR MORE INFORMATION.
- Layout Assistance
- Contact for layout assistance. Code compliant emergency lighting layouts provided! Specifications and dimensions subject to change without notice.
