Architectural Emergency Luminaire

Phoenix

PHO

With spacing up to 55 ft in 9 ft ceilings, this recessed down light with a 4" & 6" trim is our most efficient emergency luminaire; very effective in long corridors, it is inconspicuous and will blend with general lighting fixtures without affecting the appearance of ceiling layouts.

Spec sheet PDF

CB COMPATIBLE

24 VDC remote (RE)

DUAL FUNCTION

Emergency + night / security

ARCHITECTURAL

Recessed 4″/6″, selectable trim

LONG LIFE

> 50,000 h lamp life

Documents

Submittal documents for Phoenix. Preview inline or download.

Download

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

PHO

Sample order example: PHO-4-11L-AC-SK

Signature Series

Buy American Act compliant and made in the USA. BAA documentation ships with the submittal package.

Specifications

Beam Angle: 120° Large angle
Lamp Life: Over 50,000 hours in normal use
Cri: Ra > 90
Cct Selectable: Field Selectable CCT 2700K / 3000K / 4000K / 5000K (AC models); RE models are 5000K only
Input: Universal 120V/277V (50-60Hz)
Power Factor: > 0.90
Thd: < 20%
Dimming: Dimmable down to 10% with most line voltage dimmers (AC Operation only)
Construction: Die Cast Lamp Housing, Baked Enamel finish, Stainless Hardware. Easy installation in new construction or remodel applications, equipped with torsion springs. Compatible with 4.25"-6.5" ceiling cut-outs.
Operation: Operates with Sage central battery including low voltage normal lighting operation. Dual function operation for Night or Security lighting as well as emergency lighting. Upon loss of AC building power, emergency (RE) models operate for a minimum of 90 minutes.

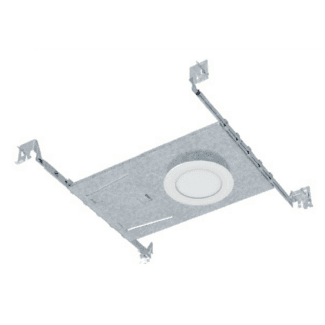

General: New-construction adjustable bar-hanger frame with integral junction box and remote power supply; LED flat downlight (4" or 6") mounts via torsion springs into the trim ring.
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
Layout Note: Contact for layout assistance. Code compliant emergency lighting layouts provided! Specifications and dimensions subject to change without notice.

Commonly Specified Together

Architectural downlight — works with central battery

KEYKeystoneCentral Battery Cabinet

OBSObsidianRecessed LED Down Light

ASPAspenArchitectural Emergency Luminaire

Replaces These Competitor Models

Evenlite

EVOAPAL

Lithonia

AFBAFFAFOLRPAFB W RD EL M6

Hubbell

DYN6

Hover any code for match basis. See the full cross-reference for spec comparison.
