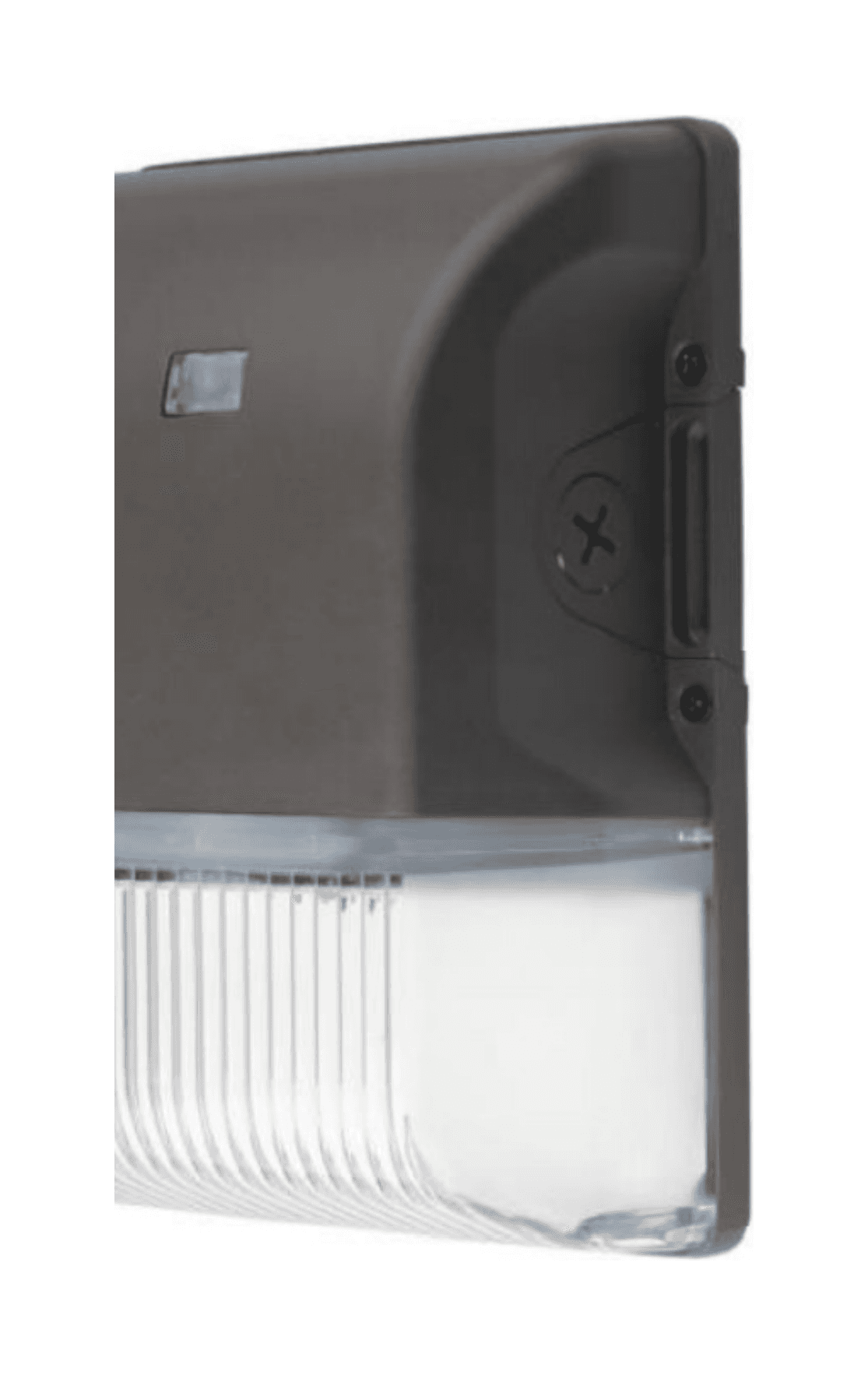

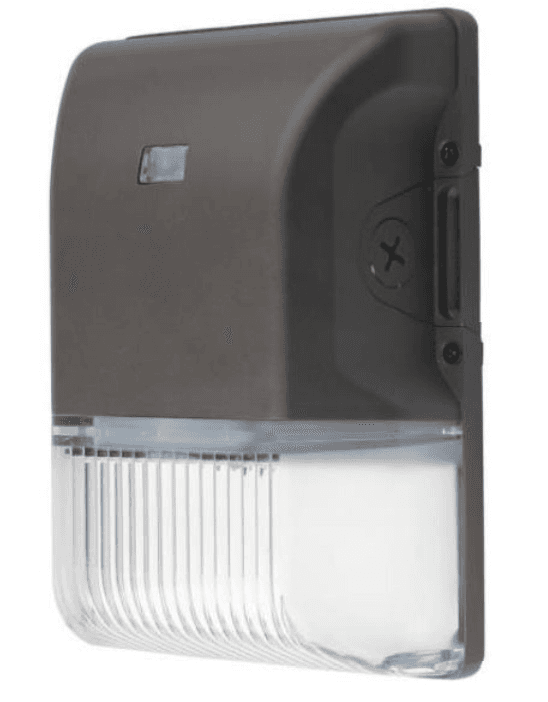

Compact Emergency Wall Pack

Glow

GLO

High-quality LED wall pack. The optional factory-installed Sage Relay option ensures full emergency code compliance at the lowest possible cost.

INTEGRAL RELAY

Sage Relay built-in

WET LOCATION

IP65 · −30 to 45 °C

SELECTABLE CCT

3000 / 4000 / 5000 K

DIMMABLE

0–10 V to 10%

Documents

Submittal documents for Glow. Preview inline or download.

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

GLO

Sample order example: GLO-20-3L-MV-3K-RLY

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Ingress Protection: IP65
Surge Immunity: 2.5kV
Housing: Diecast alloy housing, dark bronze powder coat finish (standard).
Lens: Diffused polycarbonate.
Photocell: Integral photocell standard.
Dimming: 0-10vdc dimming drivers, 10% continuous dimming (standard).
Operation: AC & DC Operation. Central-battery-ready (Central Battery / DC Power POE / AC).
Conduit Openings: Two ½" NPT threaded openings.
L70: > 174,000 hours (≥ 70% of initial lumen output; IES TM-21-11 calculated)
L90: > 51,000 hours (≥ 90% of initial lumen output)
Note: IES Files and Zonal Lumen Summaries and Polar Diagrams available (page-2 PHOTOMETRIC DATA — linked resource, not tabulated on the sheet).
Ies Sample File: IES-GLO-3L-5K-277V-2-Sep-2020
Width In: 5 ¾"
Height In: 8 ⅝"
Depth In: 3"
