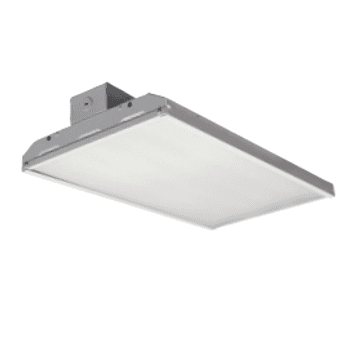

Full Body Linear High Bay — Sensor Ready, Lumen & Kelvin Selectable

Cypress

CYP

Full Body Linear High Bay — Sensor Ready · Lumen & Kelvin Selectable · 12,000–60,000 nominal lumens · 4000K/5000K field selectable · emergency-ready via factory-installed Sage Relay on a low-voltage DC central battery system

Spec sheet PDF

SELECTABLE

Tri-lumen · 4000/5000 K

UP TO 60,000 LM

Four sizes · 12,000–60,000 nominal

CENTRAL BATTERY

Sage Relay emergency option

DLC PREMIUM

cULus damp listed

Documents

Submittal documents for Cypress. Preview inline or download.

Download

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

CYP

Sample order example: CYP-24L-SL-SK-RLY

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
Model Header Min: Sage Relay
Model Header Max: Sage Relay
Note: Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. To calculate lumen output within the EPR range given: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).
Mounting Footnote: * SMK and PMK not compatible with UNC and EM drivers.

Commonly Specified Together

High bay luminaire — pair with central battery + high-bay Sage Relay

RLYRelaySage Relay

Replaces These Competitor Models

Evenlite

APALMANRAY

Lithonia

AFBAFFAFOAFB W RD EL M6

Hubbell

DYN6

Hover any code for match basis. See the full cross-reference for spec comparison.
